EPDM Rubber Non-standard Parts
Case Study:

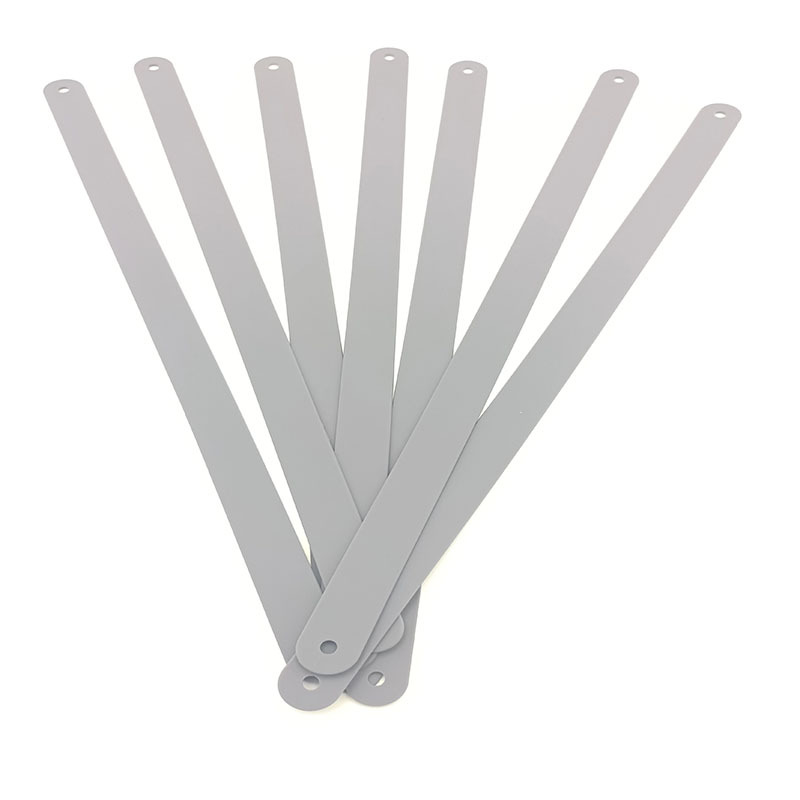

Customized Rubber Parts for Automotive Applications
Client Background:
Our client, a well-established automotive parts manufacturer, approached us with a specialized request: to open molds for the production of non-standard rubber parts, including long rubber strips, tailored specifically for use in automotive applications. The challenge was clear: the rubber strips needed to be customized to meet precise specifications, with a tolerance range for shrinkage controlled within approximately 0.5%. This project required a high level of expertise and attention to detail to ensure that the rubber parts would meet industry standards and perform reliably under demanding conditions.
Challenges:
The client’s requirements for these customized rubber parts were complex due to the unique nature of the automotive application. In addition to the precise shrinkage tolerance, there were other factors to consider, including:
Durability: The rubber strips needed to withstand high temperatures, friction, and chemical exposure typically encountered in automotive environments.
Consistency: Ensuring that the production process maintained a consistent quality throughout, with no defects or deviations from the set specifications.
Shrinkage Control: A critical aspect of the project was managing the shrinkage rate of the rubber parts, which needed to stay within a tolerance of 0.5% during the curing process.
Consistency: Ensuring that the production process maintained a consistent quality throughout, with no defects or deviations from the set specifications.
Shrinkage Control: A critical aspect of the project was managing the shrinkage rate of the rubber parts, which needed to stay within a tolerance of 0.5% during the curing process.
The client required customized EPDM rubber strips, which are widely used in automotive seals and gaskets due to their excellent resistance to weather, heat, and ozone. However, achieving precise dimensions with such a tight tolerance range posed significant production challenges, particularly in mold design and material selection.
Our Approach:
At our customized rubber parts factory, we took several strategic steps to ensure the success of the project:
Customized Rubber Product Mold Opening: The first step was to open the molds for the customized rubber parts.Using advanced CAD (Computer-Aided Design) technology, our engineering team worked closely with the client to design molds that would accommodate the unique dimensions and specifications of the rubber strips. We selected the most appropriate mold materials and configurations to minimize shrinkage during the curing process.
Material Selection and Formulation: Given the automotive application, we recommended using EPDM rubber, known for its exceptional resistance to heat, aging, and environmental stress. We worked with our client to select the right grade of EPDM rubber, ensuring that it would meet the required physical properties and perform optimally under automotive conditions.
Prototyping and Testing: Once the molds were created and the material was selected, we moved on to the prototyping phase. We produced an initial batch of rubber parts and conducted comprehensive testing to evaluate their performance. During this phase, we focused on measuring shrinkage rates, dimensional accuracy, and material performance.
Continuous Quality Improvement: After the initial tests, we identified areas where the shrinkage tolerance could be further optimized. We then worked on refining the curing process to achieve a more consistent shrinkage rate. This iterative process of continuous improvement helped us perfect the technology, ensuring the rubber strips met the client’s specifications within the required tolerance range of 0.5%.
Client Testing and Feedback: Over the course of six months, the client tested the rubber strips in real-world automotive applications. They evaluated factors such as durability, fit, and performance in various automotive environments. We received regular feedback from the client, which we used to make further adjustments and improve the quality of the rubber strips.
Final Approval:After six months of rigorous testing and optimization, the rubber strips met all the client’s standards for quality and performance. The customized rubber parts were successfully integrated into the client's automotive production line, providing a reliable, durable, and high-performance solution for their needs.
Results and Outcome
By leveraging our expertise in customized rubber product mold opening and the use of EPDM rubber, we were able to deliver high-quality rubber strips that met the precise shrinkage tolerance requirements. Through continuous improvements and close collaboration with the client, we ensured that the final product was not only within tolerance but also performed optimally in real-world applications.
The key outcomes of this project were:
Precise Shrinkage Control: We successfully maintained a shrinkage tolerance of 0.5%, meeting the client’s requirements.
High-Performance Rubber Parts: The customized EPDM rubber strips exhibited excellent durability, resistance to environmental factors, and overall performance in automotive applications.
Client Satisfaction: The client was satisfied with the final product, and the rubber strips were successfully integrated into their automotive manufacturing process.
High-Performance Rubber Parts: The customized EPDM rubber strips exhibited excellent durability, resistance to environmental factors, and overall performance in automotive applications.
Client Satisfaction: The client was satisfied with the final product, and the rubber strips were successfully integrated into their automotive manufacturing process.
Why Choose Our Customized Rubber Parts Factory?
This case study highlights the strengths of our customized rubber parts factory in addressing complex client needs. With our expertise in mold design, material selection, and production processes, we deliver high-quality custom rubber parts that meet stringent tolerances and performance standards. Whether you require customized rubber product molds for automotive, industrial, or consumer applications, we are committed to providing solutions that deliver both precision and durability.
Our ability to continuously improve the production process and work closely with our client allowed us to overcome challenges and deliver high-quality customized rubber parts that met the specific needs of the automotive industry. If you're looking for a trusted partner to help you with your next project involving customized rubber parts, we are here to offer our expertise and support
